The JAG RESCUE KIT is a ready-to-use reversible rescue kit designed to easily pick off and lower a victim. It contains a JAG SYSTEM haul kit, a RING OPEN gated ring, an I’D EVAC descender with integrated brake, a CONNEXION FIXE 150 cm anchor strap, a BUCKET bag, and an AXIS 11 mm rope with two sewn terminations. It is available in three lengths: 30, 60, and 120 m.

Description:

Designed to easily pick-off and lower a victim:
- Pick-off with the JAG SYSTEM haul kit, which has a 4:1 mechanical advantage and excellent sheave efficiency, allowing user effort to be divided by 4 when raising a victim in order to release them
- Evacuation with the I’D EVAC descender, with a handle that is specially designed to easily lower a victim, and an anti-panic function that activates if the user pulls too hard on the handle, which brakes and stops the descent automatically
Always ready to use for quick response:

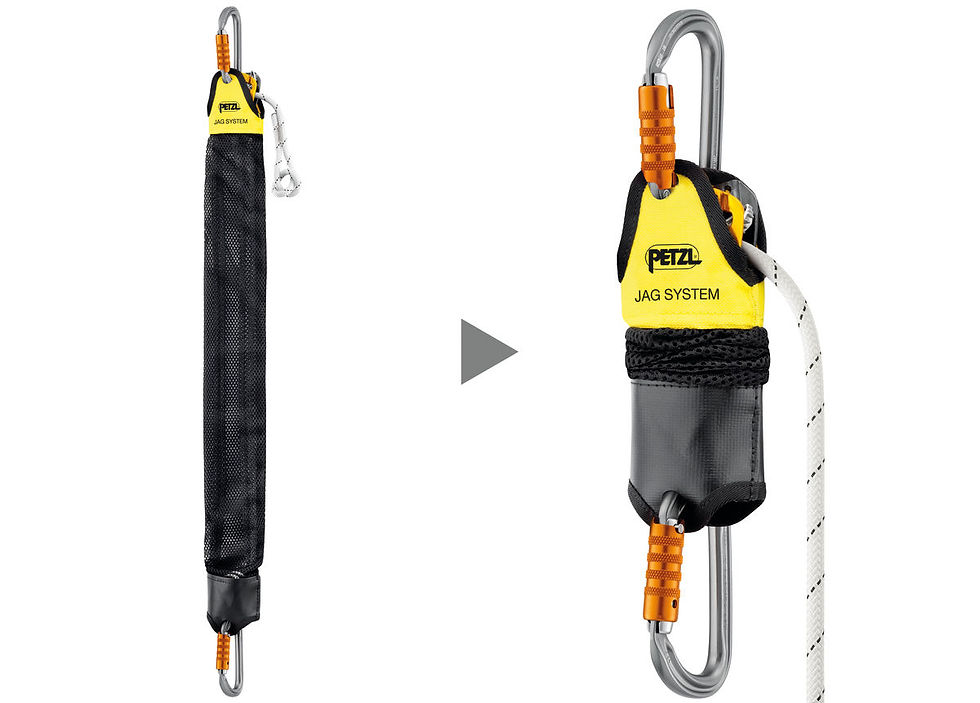

- JAG SYSTEM equipped with flexible cover that reduces risk of tangling
- Rope is pre-installed in the closed brake, which is integrated in the descender to better control the descent and to provide a constant redirect
- BUCKET bag for transporting the kit
- Kit comes loaded and ready to use
Available in three rope length versions: 30, 60, and 120 meters
Rescue kit contents:
- JAG SYSTEM haul kit
- RING OPEN gated ring
- I’D EVAC descender
- AXIS 11 mm rope with two sewn terminations
- CONNEXION FIXE 150 cm anchor strap
- BUCKET 15-liter bag for the 30-meter version, 30-liter bag for the 60-meter version, and 45-liter bag for the 120-meter version
Specifications
Working load limit: 250 kg
Material(s): Aluminum, steel, nylon, polyurethane, polyester
