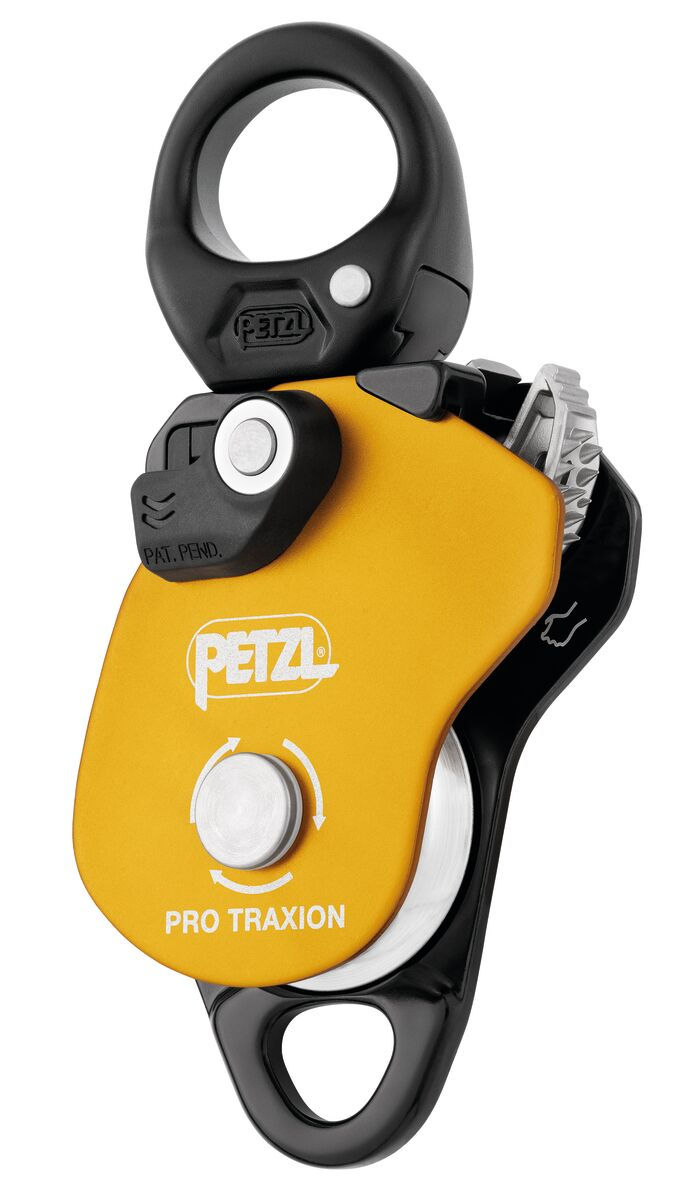

Possible to open, even when attached to the anchor, the PRO TRAXION progress-capture pulley is designed for setting up haul systems. With a large diameter sheave mounted on sealed ball bearings and excellent efficiency, it is particularly suitable for hauling heavy loads. The swivel makes it easier to operate, allowing the pulley to be oriented under load and for direct connection of carabiners, ropes, or slings.

Drop-resistant and easy to operate:
- Triple-action opening of the moving side plate is quick and easy, even with gloves
- Rope can be installed when the pulley is connected to the anchor
- Red indicator provides a visual warning when the moving side plate is unlocked
- Special side plate design protects the rope path
Designed for hauling heavy loads:
- Large diameter aluminum sheave mounted on sealed ball bearings for excellent efficiency
- Swivel allows pulley to be oriented under load
Versatile:
- Swivel and auxiliary attachment point allow the use of carabiners, ropes, and slings for easier rigging
- Toothed cam with self-cleaning slot optimizes performance under a variety of conditions, such as when the ropes are frozen or dirty
- May be used as a simple pulley by locking the cam in the raised position
- Auxiliary attachment point can be used to set up a haul system
- Hole in the cam for installation of a remote control cord
Specifications
Weight: 295 g
Certification(s): CE EN 567, CE EN 12278, CE EN 12841 type B, UKCA, NFPA 2500 Technical Use Pulley and Rope grab
Material(s): Aluminum, stainless steel, nylon
Min. rope diameter: 8 mm
Max. rope diameter: 13 mm
Sheave type: Sealed ball bearings
Sheave diameter: 38 mm
Breaking strength - pulley: 11.5 kN x 2 = 23 kN
Breaking strength - rope clamp: 4 kN
Efficiency: 95 %

For an informative video click here

References
P055AA00
Guarantee
3 years
